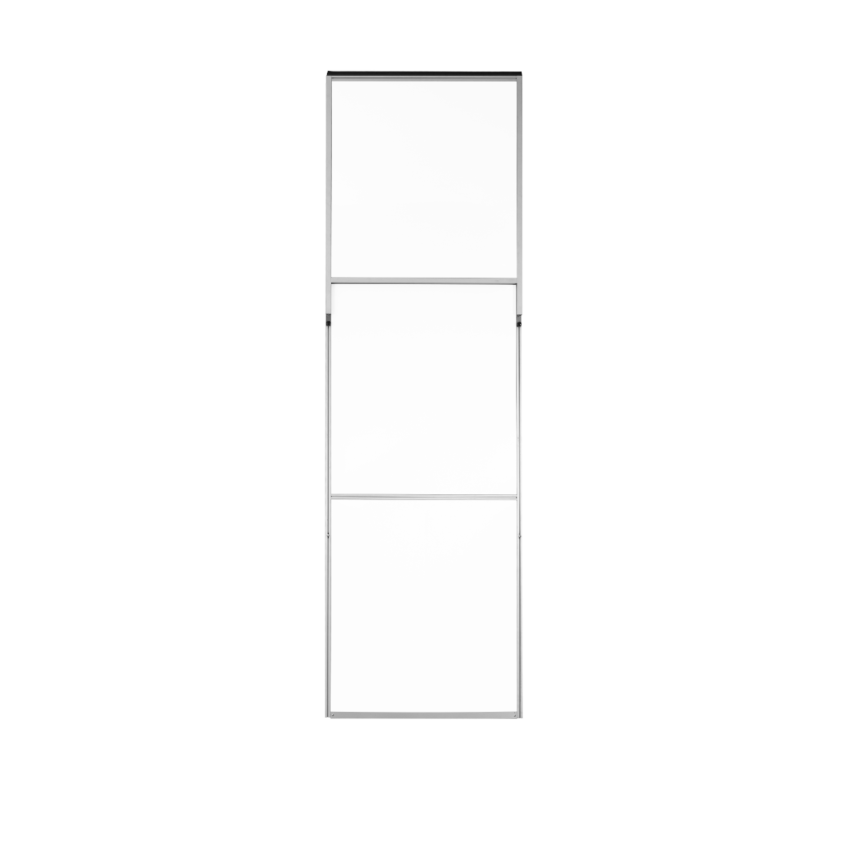

All SHIELD WALL™ CORE panels are available in 5 widths (12”, 18”, 24”, 36” & 48”). Panels have telescoping tops that adjust from 7’ to 10’3” in height. Panels are securely connected with other SHIELD WALL ™ components with installed top and bottom drop-in connectors. Top and bottom gaskets create airtight seals. All installation hardware including ceiling grid attachment brackets are included. The clean white painted aluminum exterior has an attractive appearance and securely conceals construction areas from occupied spaces.
Surface Burn Characteristics: SHIELD WALL™ CORE panels exceed ASTM E84
In 3rd party test results, SHIELD WALL™ CORE PANELS reduced the noise level of an air compressor operating at 90dB at a distance of 8ft from the wall by 20dB
| Frame Construction | Anodized aluminum with steel screws |
|---|---|
| Pane Construction | Painted white aluminum finish on one side, galvanized steel on the other side, closed cell foam core interior |
| Min/Max Height | 84" - 123" |
| Dimensions | 84"L x 36" W x 2"D |
