CLASSIC PANELS
Lightweight, opaque design affords privacy.

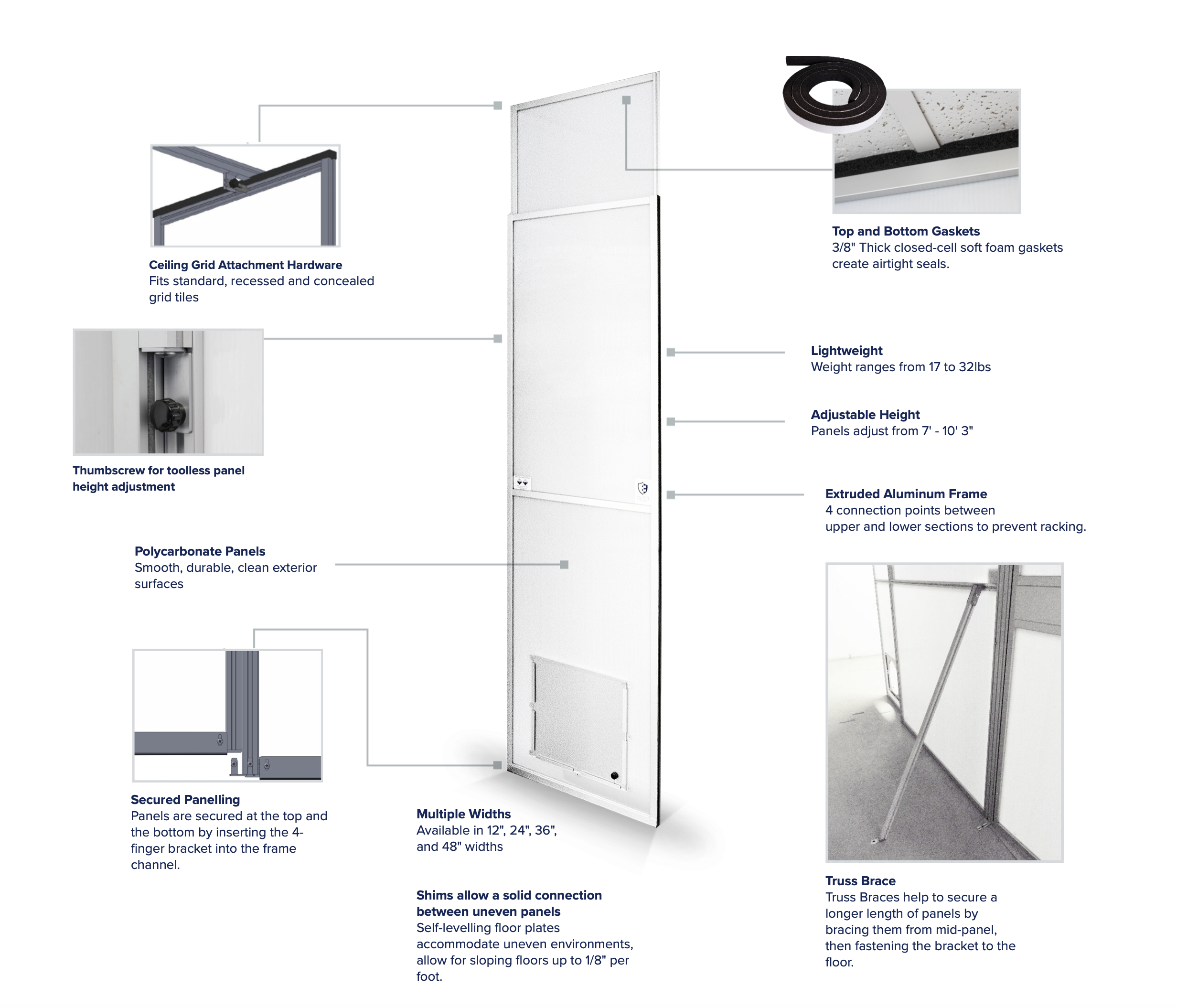

Panel Information
The original SHIELD WALL™ Classic panels can be used to create temporary, reusable modular wall systems for dust control during construction and renovation in critical care environments. Made from durable, translucent polycarbonate and aluminum framing, toolless panel height adjustment is possible from 7ft - 10ft 3 in.
Specifications
Panels are available in five widths of 12", 18", 24", 36" and 48", allowing for many different configurations.
Frame Construction: Anodized Aluminum with steel screws
Weight Range: 17 - 32lbs
Panel Construction: Translucent polycarbonate
Sound Attenuation: In 3rd party test results, the SHIELD WALL™ reduced the noise level of an air compressor operating at 90dB at a distance of 8ft from the wall by 17dB.
CLEAR PANELS
A transparent option for enhanced visibility.
Designed specially for projects requiring visibility, our SHIELD WALL™ CLEAR panels can be used to create a temporary wall system for dust control during construction and renovation. Equipped for all environments, including critical care, our CLEAR panels are made from durable, transparent polycarbonate and aluminum framing.
- Panels are available in five widths of 12", 18", 24", 36" and 48", allowing for many different configurations.
- Toolless panel height adjustment is possible from 7ft - 10ft 3 in.
- CLEAR. Transparent for better visibility.
- COMPLIANT. Exceeds ICRA Class IV and ASTM E84 requirements.
- CONFIGURABLE. Flexible for projects that require frequent adjustments.
Specifications
Panels are available in five widths of 12", 18", 24", 36" and 48", allowing for many different configurations.
Frame Construction: Anodized Aluminum with steel screws
Weight Range: 17 - 32lbs
Panel Construction: Translucent polycarbonate
Sound Attenuation: In 3rd party test results, the SHIELD WALL™ reduced the noise level of an air compressor operating at 90dB at a distance of 8ft from the wall by 17dB.
CORE PANELS
A superior way to contain—equipped with sound attenuation and thermal insulation.
Panel Information
A smart option for projects that require reusable modular walls that look and feel more like a traditional wall, our SHIELD WALL™CORE Panels are constructed with an attractive white aluminum exterior, durable galvanized steel interior, and a closed-cell foam core. Our CORE panels blend seamlessly into any setting and provide enhanced sound attenuation and thermal properties over other containment solutions.
- Panels are available in five widths of 12", 18", 24", 36" and 48", allowing for many different configurations.
- Toolless panel height adjustment is possible from 7ft - 10ft 3 in.
- REDUCES NOISE. Provides superior sound attenuation to minimize disruptions.
- COMPLIANT. Exceeds ICRA Class IV requirements.
- DURABLE. Built to last.
Add a section on ICRA COMPLIACE
LINK TO PHOTO GALLERY
ADD CUTSHEETS
POLYCARBONATE SURFACE BURN CHARACTERISTICS
ASTM E84 (US Standard)
NFPA Class A & IBC Class A
