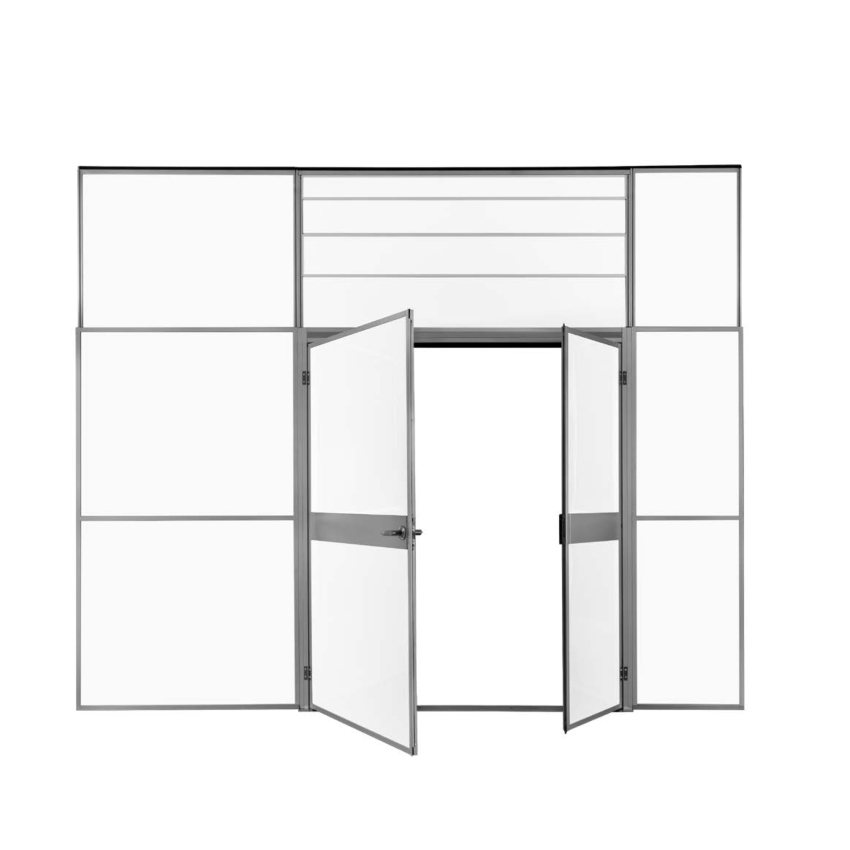

The double-hinged door features a 44” primary door with a door handle cut out and a secondary door at 24” wide, giving you a 68” wide opening set in a 72” frame.
The double door assembly is 84” high but adjustable up to 10’ 3” with the included over-the-door panel filler kit. The filler kit includes different-sized slats and aluminum spacers.
The primary door latches into the secondary door via the latch bolt. The secondary door is secured at the top and bottom with spring-loaded pins. Both doors can be hung to swing in or out. A key-locking lever-style handle is included. An optional electronic digital keypad may be purchased separately.
| Frame Construction | Anodized aluminum with steel screws |
|---|---|
| Pane Construction | Translucent Polycarbonate |
| Min/Max Height | 80" - 123" |
| Dimensions | Frame: 80"-123"L x 72" W x 2"D, Primary Door: 80" L x 44"W x 2"D, Secondary Door: 80" L x 24" W x 2"D |
