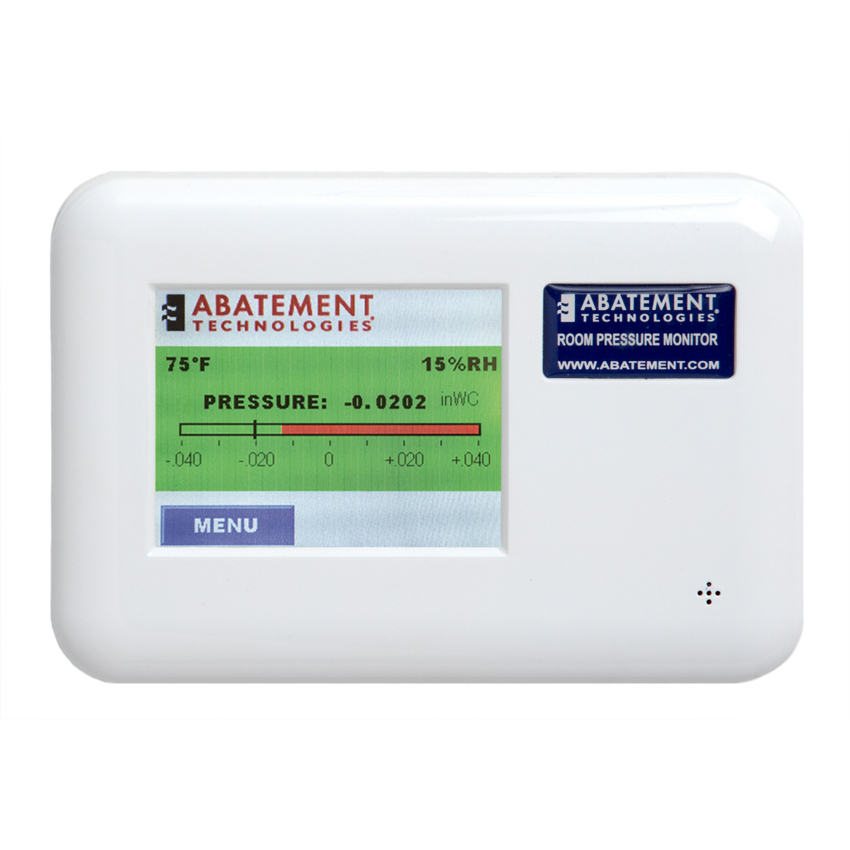

Single Room Pressure Monitor RPM-RT1 Kit

The single room pressure monitor kit includes:

1 ea RPM-RT1 pressure monitor
1 ea HCPDPMTUBE (25ft Clear Tubing)
1 ea RPM-RTSENSOR (Temp/RH Sensor)
1 ea RPM-CABLE-025 (25ft Ethernet Cable)

In stock

SKU

RPM-RT1K

Categories: All Products Monitors, Meters and Instruments Differential Pressure Monitors

Details

Technically-Advanced Model

The RPM-RT1 model can monitor the pressure differential between any two rooms or areas.

Features a user-friendly, menu driven touch screen with intuitive software for quick set-up and ease of operation.

Feature-rich and easy-to-use, RPM Series Wall-Mounted Differential Pressure Monitors include:

Differential Pressure Range: -0.10 in. water gauge (-25 Pa) to +0.10 in. water gauge (+25 Pa)
Alarm Range: -.04 in. water gauge (-10 Pa) to +0.04 in. water gauge (+10 Pa)
View readings history onscreen via internal storage or upload to a PC via a USB stick
Color coded screen background (Green, Yellow or Red) designates alarm status
Password protection feature (can be disabled)
Visual & audible alarms with audio alarm delay & timed shutoff features
BACNET & N2 network capability

Specifications

More Information
Collapsed Footprint Dimensions	15.19 x 10.21 x 2.82 cm (5.98” x 4.02” x 1.11”)
Max Power Consumption	150 mA at max display brightness
Voltage	9-24 AC or DC
Pressure_Units_Displayed	Inches of water column (inWC), Pascal (Pa)
Burst Ports	no power is provided
Range of Measurement	(+/-) 0.10 inWC, (+/-) 25Pa
Accuracy of Measurement	(+/-) 3% full scale
Display	3.5” 262K color TFT display, 320x240 resolution
Alarms	Custom alarm set points from -0.0400 inWC (-9.964 Pa) to 0.0400 inWC (9.964 Pa) at a resolution of 0.001 inWC (0.025 Pa)
Net Weight	0.5 lb
Pressure Ports	Relay output rated at 2 amps @ 30 volts DC
Operating Temperature	1/8" barbs for 1/8" ID tubing
USB Port	0% - 85% relative humidity (non-condensing)
Operating Humidity	41 degree F to 131 degree F (5 degree C to 55 degree C)
Data Storage Capacity	USB V1.0 type A for connecting USB flash drive
Data Type	9000 ft maximum
Operating Altitude	-22 degree F to 176 degree F (-30 degree C to 80 degree C)
Pinless Moisture	4 Mega bits
IR Temperature	Archive erased
Pinless_Moisture_Depth_Max	12000 logged events in non-volatile memory (no power or battery required) Data Logging Date and time are shown with a logged event. Events are: alarm condition with current pressure for a specific room
Internal Clock	Data transmitted in CSV file via USB flash drive can be imported into any text based editor
Pin Moisture	System startup
IR Distance to Spot Ratio	Calibration
Relative Humidity	Alarm reset
IR Emissivity	Powered by a lithium ion battery that provides years of clock operation when neither AC nor DC power is present
Types_of_Alarms	Audible internal speaker with sound pressure level of 85dB at 4 in; display warning (yellow for pre-alarm, red for alarm)
