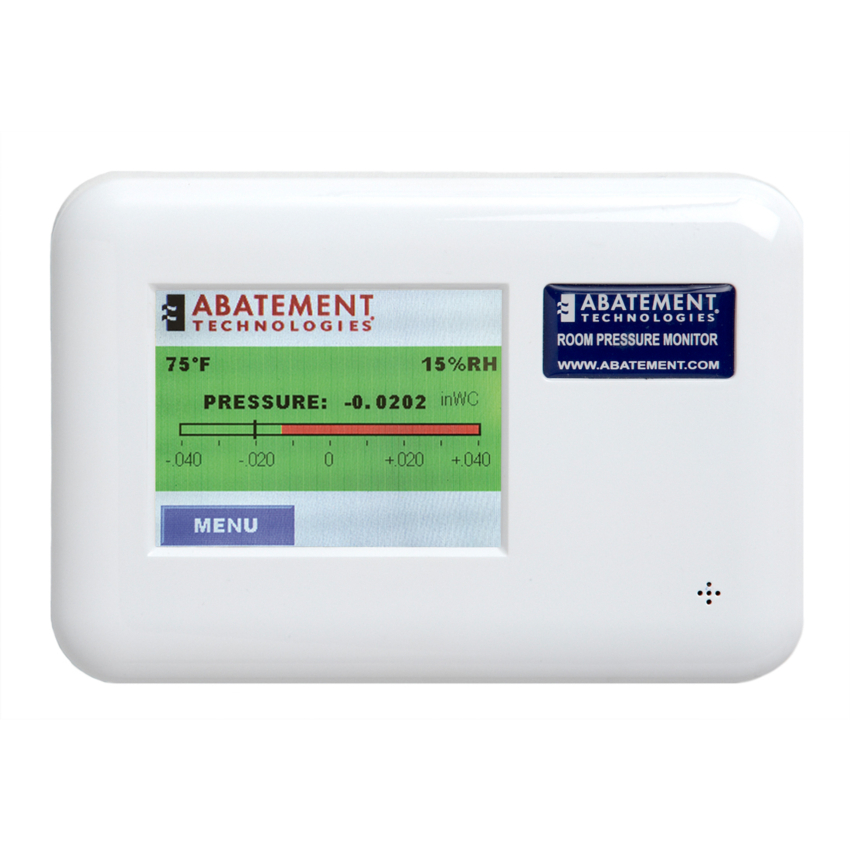

main product photo

Single Room Pressure Monitor RPM-RT1

Wall-Mounted Pressure Monitors Provide State-of-the-Art Technology  Features and Design at an Economical Price

Abatement Technologies® RPM Series Differential Pressure Monitors provide 24/7 monitoring and recording of differential air pressure relationships between multiple rooms or areas within a healthcare facility.

Primary uses include:

  • Patient infectious isolation rooms
  • Protective environments
  • Clean rooms
  • Hospital construction work areas
  • Central Sterilization/Sterile Processing Departments

Download Product Information

Email
In stock
SKU
RPM-RT1
All ProductsMonitors, Meters and InstrumentsDifferential Pressure Monitors

Technically-Advanced Model
The RPM-RT1 model can monitor the pressure differential between any two rooms or areas.

Features a user-friendly, menu driven touch screen with intuitive software for quick set-up and ease of operation.

Feature-rich and easy-to-use, RPM Series Wall-Mounted Differential Pressure Monitors include:

Differential Pressure Range: -0.10 in. water gauge (-25 Pa) to +0.10 in. water gauge (+25 Pa)
Alarm Range: -.04 in. water gauge (-10 Pa) to +0.04 in. water gauge (+10 Pa)
View readings history onscreen via internal storage or upload to a PC via a USB stick
Color coded screen background (Green, Yellow or Red) designates alarm status
Password protection feature (can be disabled)
Visual & audible alarms with audio alarm delay & timed shutoff features
BACNET & N2 network capability

RPM-RT1K Kit includes 1 ea pressure monitor, 1 ea 25' of clear tubing, 1 ea temperature/rh sensor and 1 ea 25' Ethernet cable

RPM-RT1T - Kit includes: 1ea Pressure Monitor and 1 ea 25' of Clear Tubing 1/8" IDX1/4" OD

More Information
Dimensions (L x W x H) 15.19 x 10.21 x 2.82 cm (5.98” x 4.02” x 1.11”)
Max Power Consumption 150 mA at max display brightness
Voltage 9-24 AC or DC
Pressure_Units_Displayed Inches of water column (inWC), Pascal (Pa)
Burst Ports no power is provided
Range of Measurement (+/-) 0.10 inWC, (+/-) 25Pa
Accuracy of Measurement (+/-) 3% full scale
Display 3.5” 262K color TFT display, 320x240 resolution
Alarms Custom alarm set points from -0.0400 inWC (-9.964 Pa) to 0.0400 inWC (9.964 Pa) at a resolution of 0.001 inWC (0.025 Pa)
Net Weight 0.5 lb
Pressure Ports relay output rated at 2 amps @ 30 volts DC
Operating Temperature 1/8" barbs for 1/8" ID tubing
USB Port 0% - 85% relative humidity (non-condensing)
Operating Humidity 41degreeF to 131degreeF (5degreeC to 55degreeC)
Data Storage Capacity USB V1.0 type A for connecting USB flash drive
Data Type 9000 ft maximum
Operating Altitude -22degreeF to 176degreeF (-30degreeC to 80degreeC)
Pinless Moisture 4 mega bits
IR Temperature archive erased
Pinless_Moisture_Depth_Max 12000 logged events in non-volatile memory (no power or battery required) Data Logging Date and time are shown with a logged event. Events are: alarm condition with current pressure for a specific room
Internal Clock Data transmitted in CSV file via USB flash drive can be imported into any text based editor
Pin Moisture system startup
IR Distance to Spot Ratio and calibration
Relative Humidity alarm reset
IR Emissivity Powered by a lithium ion battery that provides years of clock operation when neither AC nor DC power is present
Types_of_Alarms Audible internal speaker with sound pressure level of 85dB at 4 in; display warning (yellow for pre-alarm, red for alarm)
