Legendary Air Cleaning Performance in a Galvanized Steel Cabinet
HEPA-AIRE Negative Air Machines from Abatement Technologies® feature high-quality, galvanized steel cabinets and water tight pop rivet construction.

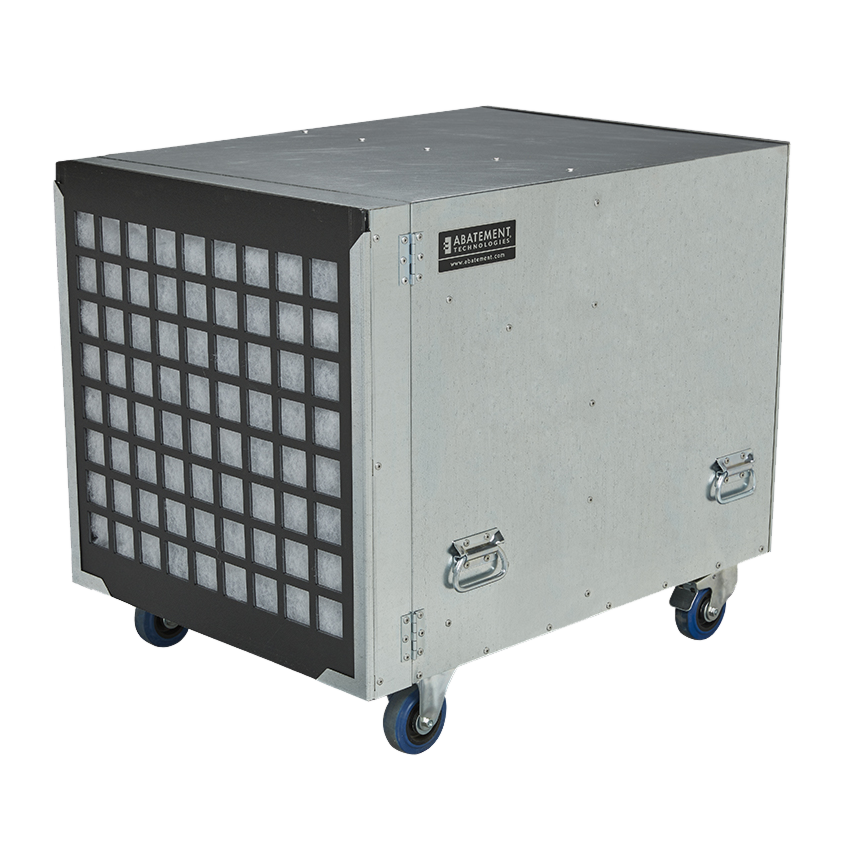

HEPA-AIRE Model H2KM and Deluxe Model H2KMA Negative Air Machines
The powerful HEPA-AIRE model H2KM and deluxe model H2KMA Negative Air Machines from Abatement Technologies are designed for the contractor who wants the very best in performance, reliability and quality. The difference between the two units is that the H2KM is equipped with a visual “change filter” indicator lamp, while the H2KMA deluxe model adds a large 5” diameter differential pressure gauge and an audio “change filter” alarm.
Features of the HEPA-AIRE Model H2KM include:
| Dimensions (L x W x H) | 35.75 x 26 x 30.25 (91 x 66 x 77) |
|---|---|
| Net Weight With Filters | 124 lbs. with H242406-99 HEPA; 151 lbs. with H2010M HEPA. |
| Shipping Dimensions | 141 lbs. with H242406-99 HEPA; 168 lbs. with H2010M HEPA. |
| Power Supply Requirements | 115-120 volts AC, 60Hz, 15 amp circuit. |
| Normal Starting Amps | 10 or less |
| Cabinet Material | 20 gauge galvanized steel. |
| Stage 2 Pre_Filter | H2002, 2” deep particulate pleat |
| Stage 1 pre-filter | H2001, polypad |
| HEPA Filter | H242406-99, 6” deep 99.97% @ 0.3 microns |
| Transportability | 4, 360 degree swivel casters with locking feature. 2 each removable 4 fixed position casters. |
| Motor Output | 1 HP, 2 speed motor with thermal overload protection, auto re-set, 60 Hz, single phase |
| Optional HEPA Filter | Tested and certified to an efficiency of 99.97% or higher against0.3 micron size particles (H2010M). |
