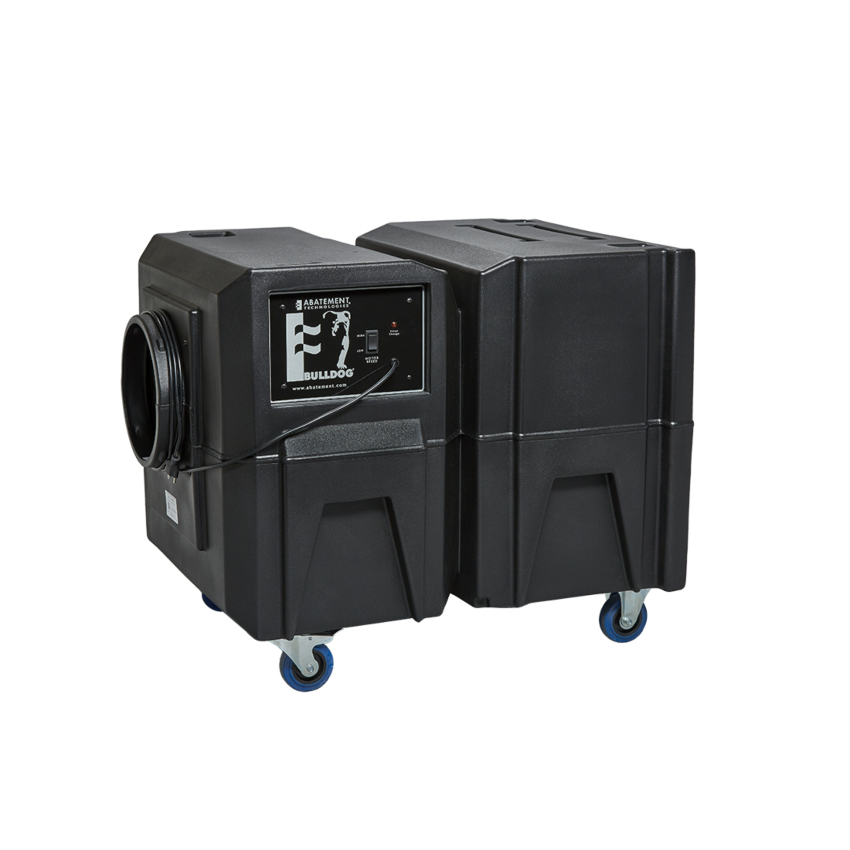

BULLDOG® BD2KM Negative Air Machine

  • Powerful airflow, rated at 1,300 cfm (L) & 2,000 cfm (H)
  • Two pre-filter stages and a True 99.97% HEPA filter
  • Equipped with a visual “change filter” indicator lamp
  • Superior mobility and light weight
  • NRTL certified to conform to stringent UL and CSA safety standards

Download Product Information

Air Change Calculator

In stock
SKU
BD2KM

Features Include: Higher CFM, Three Stages of Filtration & Easier Filter Removal in a Tough Rotationally-Molded Cabinet

The powerful yet lightweight BULLDOG BD2KM contractors model and BD2KMA deluxe model from Abatement Technologies have been redesigned to deliver even more outstanding HEPA air cleaning performance. Its rotationally-molded polyethylene cabinet made from a UL94HB flame retardant poly resin is virtually indestructible and leak-tight.

The difference between the two units is that the BULLDOG BD2KM is equipped with a visual “change filter” indicator lamp, while the BULLDOG BD2KMA deluxe model adds a large 5” diameter differential pressure gauge and an audio “change filter” alarm.



State-of-the-art features of the BULLDOG Neg Air Machines include:

  • Powerful Air Flow - High-performance motor and custom-engineered blower
  • Virtually Indestructible Cabinet - Polyethylene cabinet is easy to clean and decontaminate
  • True Original Equipment Micro-Glass HEPA Media Filter - Each model ships with a high-capacity 24” x 24” x 6” HEPA filter individually tested and certified at 2,000 cfm airflow to ensure that it provides minimum filtration efficiency of 99.97% @ 0.3 microns
  • Optional 12”-Deep HEPA Filter - Unique design of the BULLDOG allows both models to also accept replacement 24” x 24” x 12” replacement HEPA filter in place of standard 6”-deep HEPA
  • Multiple Airflow Settings - High and low motor speed settings
  • User-Friendly Controls - Recessed controls to protect components
  • Convenient Filter Access - Hinged access door provides quick access to filters
  • Superior Mobility - Two fixed and two locking 4” swivel casters plus 4 lift handles
  • Safety FirstNRTL-certified to comply with UL Std. 507 & CAN/CSA Std. #C22.2 No. 113-M1984 for electrical safety & UL94HB flammability requirements for polymer cabinets housing energized electrical components
  • Export Models - The BD2KMTF & BD2KMATF models are available for 230 Volt/50 Hz export markets. Contact our U.S. export sales department for additional information
More Information
Dimensions (L x W x H) 39.5 x 28.5 x 31.625 (100.33 x 72.39 x 80.33)
Airflow 2,000 (H) 1,300 (L)
Net Weight With Filters 117 lbs
Shipping Weight 137 lbs
Circuit Breaker 120V/60Hz/15A
Normal Starting Amps 10 or less
Cabinet Material UL94HP fl ame retardant resin
Pre Filter Access Drop-in access door
Stage 2 Pre_Filter H2002, 2” deep particulate pleat
Stage 1 pre-filter H2001, polypad
HEPA Filter H242406-99, 6” deep 99.97% @ 0.3 microns
Final stage HEPA filter H2010M, 12” deep 99.97% @ 0.3 microns
Motor Blower Squirrel Cage
Operating Amp Draw 10.0 A
Motor Output 1 HP, 2 speed motor with thermal overload protection, auto re-set, 60 Hz, single phase
Operating Speeds 2 Peak
Optional Second Stage Pre-Filter VL2024
Carrying Handles Yes, 4
Casters 2 Fixed 2 locking swivel
Thermal Overload Protection Yes
